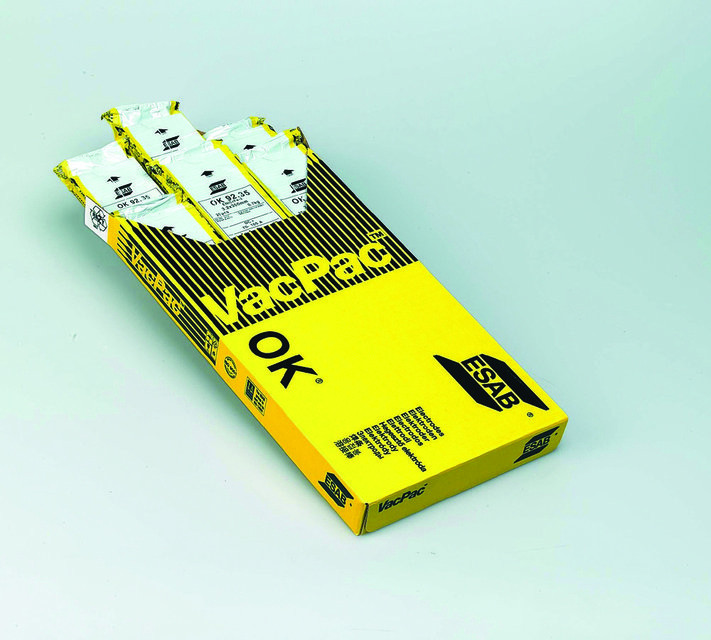

*Electrode ESAB OK 92.35 3,2x350mm VacPac
75,00 €
Palun küsige hinda
SKU
92353230K0
OK 92.35 is a nickel-based, super-alloy electrode of the NiCrMoW type. OK 92.35 deposits an extremely tough work-hardening weld metal, resistant to attacks by the most commonly used acids. The weld metal has good high-temperature properties in terms of tensile strength, hardness, thermal shock and scaling. The lowest possible heat input should be applied. Typical applications Hardfacing: hot forging dies, hot working tools, hot shear blades Joining: Nimonic and Inconel alloys, these alloys to carbon and alloy steels Cladding: Corrosion- and wear-resistant layers on valves and pump components
Typical Tensile Properties
| Condition | Elongation | Hardness (HRC) | Tensile Strength | Yield Strength |
| As Welded | 17 % | 240-260 HV | 750 MPa | 515 MPa |
Weld Metal Analysis
| Mn | Mo | C | Si | W | Ni | Cr | Fe |
| 0.8 % | 16.4 % | 0.05 % | 0.5 % | 3.5 % | 57 % | 15.5 % | 5.5 % |
Deposition Data
| Diameter | Current | Efficiency (%) | Voltage |
| 5 mm | 190-250 A | 185-190 % | 20 V |
| 4 mm | 160-200 A | 185-190 % | 20 V |
| 2.5 mm | 65-110 A | 185-190 % | 18 V |
| 3.2 mm | 110-150 A | 185-190 % | 18 V |
| Classifications: | SFA/AWS A5.11, (ENiCrMo-5), EN 14700, E Z Ni2 |
| Unit | kg |
|---|
